Part 2: Why LSTMs Were Needed: Conquering RNN Amnesia, Memory Conveyor Belts, and Gated Doors

Series: Neural Architecture Evolution Series (From MLPs to Transformers) - Part 2

Series: ← Part 1: Demystifying Neural Networks: From Simple Perceptrons to Deep Neural Networks (DNNs), CNNs, and RNNs (Previous)

Prior Reading Material

Before diving into how Long Short-Term Memory networks solved sequential degradation, explore these foundational deep-dives across our blog:

• Part 1: Demystifying Neural Networks — Biological neurons, perceptrons, MLPs, CNNs, and standard Recurrent Neural Networks (RNNs).
• Demystifying LoRA (Low-Rank Adaptation) — Understanding weight matrices, intrinsic rank, and parameter-efficient updates.
• What is a Model Weight? Demystifying Tensors, Matrices, and File Formats — The fundamental linear algebra primitives behind neural network layers.
• Training vs. Inference Lifecycle — How forward passes, backpropagation through time (BPTT), and loss surfaces shape AI models.

1. The Story of RNN Amnesia & The Broken Game of Telephone

Imagine standing in a line of 100 people playing a fast-paced game of telephone. The first person in line whispers a crucial secret to the second person:

“The secret key to the vault is hidden under the blue rug inside the garden shed.”

Each person in line must memorize what they heard, process it in their head, and whisper their updated understanding to the next person. By the time the message reaches Person #15, minor mishearings accumulate. By Person #50, the message has degraded into complete noise: “A blue dog ran into the shed.” By Person #100, the original secret has vanished entirely.

This game of telephone is precisely how standard Recurrent Neural Networks (RNNs) process sequential data—such as long sentences, financial ticker streams, or multi-minute audio recordings.

In Part 1 of this series, we saw how standard RNNs introduced feedback loops ($h_t = \tanh(W_{hh} h_{t-1} + W_{xh} x_t + b)$), allowing a single hidden vector ($h_t$) to serve as a running memory diary. However, this design suffered from a fatal flaw: catastrophic short-term memory (RNN Amnesia). Because the hidden state $h_t$ is completely overwritten and squashed by non-linear activation functions ($\tanh$) at every single time step, early signals decay exponentially fast.

If a paragraph begins with “Jane grew up in France…” and ends 80 words later with “she speaks fluent ____”, a standard RNN cannot bridge the 80-step gap to output “French”. The early context was swallowed by intervening words.

In 1997, researchers Sepp Hochreiter and Jürgen Schmidhuber proposed a revolutionary architecture designed specifically to conquer RNN amnesia: Long Short-Term Memory (LSTM).

2. The Mental Model: The Executive Leather Notebook & Memory Conveyor Belt

To understand how an LSTM solves memory loss without getting bogged down in complex equations, imagine an executive traveling on a long cross-country train.

Instead of trying to memorize every conversation and data point in their head (which corresponds to the volatile hidden state $h_t$), the executive carries a dedicated Executive Leather Notebook sitting on a smooth Memory Conveyor Belt. This notebook represents the Cell State ($C_t$).

As new information ($x_t$) arrives at each train station, the executive does not rewrite the entire notebook from scratch. Instead, three specialized assistants—known as Gated Doors—stand along the conveyor belt:

1. The Forget Gate ($f_t$) [The Shredder]: Inspects the incoming input ($x_t$) and previous summary ($h_{t-1}$), and decides which old, obsolete pages in the notebook should be erased or shredded (e.g., erasing a previous subject when a sentence transitions from “John” to “Mary”).
2. The Input Gate ($i_t$) [The Selective Pen]: Decides what precise new pieces of information are valuable enough to write into the notebook, creating a candidate memory update ($\tilde{C}_t$) and writing it onto the conveyor belt.
3. The Output Gate ($o_t$) [The Speaker/Highlighter]: Filters the updated notebook content, extracting only the relevant context needed right now to form the visible output vector ($h_t$).

Because the Cell State conveyor belt ($C_t$) runs straight through time with only additive modifications (+), information can travel across hundreds of steps untouched.

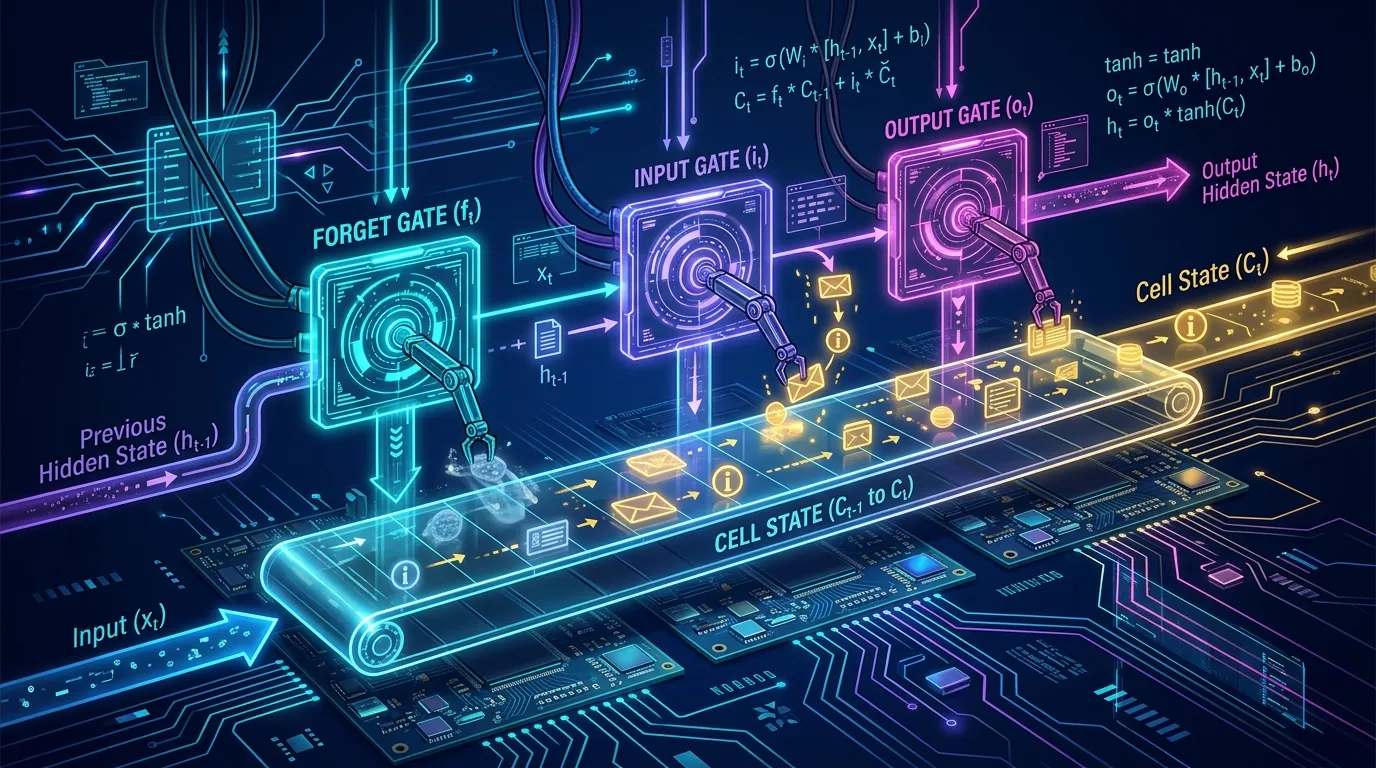

3. Visualizing the LSTM Gated Architecture

The following vertical workflow diagram illustrates the internal signal routing inside a single LSTM cell at step $t$:

flowchart TD
    direction TB

    subgraph Inputs ["Input Tensors (Step t)"]
        XT["Current Input Token (x_t)"]
        HT_PREV["Previous Hidden State (h_t-1)"]
        CT_PREV["Previous Cell State (C_t-1)"]
    end

    subgraph Gates ["The Gated Doors Layer"]
        FG["1. Forget Gate (f_t)<br/>f_t = sigmoid(W_f · [h_t-1, x_t] + b_f)"]
        IG["2. Input Gate (i_t)<br/>i_t = sigmoid(W_i · [h_t-1, x_t] + b_i)"]
        C_CAND["Candidate Update (C~_t)<br/>C~_t = tanh(W_c · [h_t-1, x_t] + b_c)"]
        OG["3. Output Gate (o_t)<br/>o_t = sigmoid(W_o · [h_t-1, x_t] + b_o)"]
    end

    subgraph ConveyorBelt ["Cell State Conveyor Belt (C_t)"]
        ERASE["Elementwise Multiply: f_t ⊙ C_t-1<br/>(Shredding Obsolete Info)"]
        WRITE["Elementwise Add: (f_t ⊙ C_t-1) + (i_t ⊙ C~_t)<br/>(Writing New Info)"]
        CT_NEXT["Updated Cell State (C_t)"]
    end

    subgraph OutputState ["Hidden Output Vector (h_t)"]
        FILTER["Elementwise Filter: o_t ⊙ tanh(C_t)"]
        HT_NEXT["Current Hidden State (h_t)"]
    end

    XT --> FG
    XT --> IG
    XT --> C_CAND
    XT --> OG

    HT_PREV --> FG
    HT_PREV --> IG
    HT_PREV --> C_CAND
    HT_PREV --> OG

    CT_PREV --> ERASE
    FG --> ERASE

    ERASE --> WRITE
    IG --> WRITE
    C_CAND --> WRITE

    WRITE --> CT_NEXT
    CT_NEXT --> FILTER
    OG --> FILTER
    FILTER --> HT_NEXT

    style XT fill:#0f172a,stroke:#38bdf8,stroke-width:2px,color:#ffffff
    style HT_PREV fill:#0f172a,stroke:#38bdf8,stroke-width:2px,color:#ffffff
    style CT_PREV fill:#0f172a,stroke:#eab308,stroke-width:2px,color:#ffffff

    style FG fill:#1e1b4b,stroke:#818cf8,stroke-width:2px,color:#ffffff
    style IG fill:#1e1b4b,stroke:#818cf8,stroke-width:2px,color:#ffffff
    style C_CAND fill:#1e1b4b,stroke:#818cf8,stroke-width:2px,color:#ffffff
    style OG fill:#1e1b4b,stroke:#818cf8,stroke-width:2px,color:#ffffff

    style ERASE fill:#0d2b45,stroke:#00e5ff,stroke-width:2px,color:#ffffff
    style WRITE fill:#0d2b45,stroke:#00e5ff,stroke-width:2px,color:#ffffff
    style CT_NEXT fill:#14532d,stroke:#22c55e,stroke-width:2px,color:#ffffff

    style FILTER fill:#312e81,stroke:#a855f7,stroke-width:2px,color:#ffffff
    style HT_NEXT fill:#581c87,stroke:#c084fc,stroke-width:2px,color:#ffffff

4. Engineering Deep-Dive: Formal Mathematical Gate Equations

Having established the mental model, let’s step into the formal linear algebra that powers PyTorch’s nn.LSTM and TensorFlow’s tf.keras.layers.LSTM.

An LSTM cell processes input vector $x_t \in \mathbb{R}^d$ and previous hidden vector $h_{t-1} \in \mathbb{R}^h$ using four distinct linear transformations.

Step 1: The Forget Gate ($f_t$)

The Forget gate decides what fraction of the previous cell state $C_{t-1}$ to retain. Because it uses the Sigmoid activation ($\sigma$), its output values are strictly bounded between $0$ (completely forget) and $1$ (completely retain):

$$f_t = \sigma\left(W_f \cdot [h_{t-1}, x_t] + b_f\right)$$

Step 2: The Input Gate ($i_t$) & Candidate Cell State ($\tilde{C}_t$)

The Input gate regulates which values will be updated, while a $\tanh$ layer creates a vector of new candidate values $\tilde{C}_t$:

$$i_t = \sigma\left(W_i \cdot [h_{t-1}, x_t] + b_i\right)$$

$$\tilde{C}t = \tanh\left(W_c \cdot [h{t-1}, x_t] + b_c\right)$$

Step 3: Updating the Cell State ($C_t$)

The new cell state $C_t$ is computed via element-wise multiplication ($\odot$) and addition (+):

$$C_t = f_t \odot C_{t-1} + i_t \odot \tilde{C}_t$$

Step 4: The Output Gate ($o_t$) & Hidden State ($h_t$)

Finally, the Output gate determines what portion of the cell state is emitted to the hidden state $h_t$:

$$o_t = \sigma\left(W_o \cdot [h_{t-1}, x_t] + b_o\right)$$

$$h_t = o_t \odot \tanh(C_t)$$

Parameter Breakdown Comparison

Why are LSTMs computationally heavier than standard RNNs? Let’s analyze the parameter count comparison table:

5. Mathematical Proof: How LSTMs Solve the Vanishing Gradient Problem

In a standard RNN, during Backpropagation Through Time (BPTT), the gradient of loss $L$ with respect to an early hidden state $h_k$ expands via the chain rule:

$$\frac{\partial L}{\partial h_k} = \frac{\partial L}{\partial h_T} \prod_{t=k+1}^T \frac{\partial h_t}{\partial h_{t-1}} = \frac{\partial L}{\partial h_T} \prod_{t=k+1}^T W_{hh}^T \operatorname{diag}\left(1 - \tanh^2(\text{net}_t)\right)$$

Because $\operatorname{diag}(1 - \tanh^2(\cdot)) \le 1.0$, repeatedly multiplying by $W_{hh}^T$ over 50+ steps causes the gradient norm to decay exponentially to zero ($\lambda^T \to 0$ when $\lambda < 1$).

The Constant Error Carousel in LSTMs

In an LSTM, backpropagating through the cell state $C_t$ yields:

$$\frac{\partial C_t}{\partial C_{t-1}} = f_t$$

If the network learns to set the forget gate $f_t \approx 1.0$ for critical information, the gradient partial derivative simplifies to:

$$\frac{\partial C_t}{\partial C_{t-1}} = 1.0$$

Therefore, during BPTT across $T - k$ time steps:

$$\frac{\partial L}{\partial C_k} = \frac{\partial L}{\partial C_T} \prod_{t=k+1}^T f_t \approx \frac{\partial L}{\partial C_T} \cdot (1.0)^{T-k} = \frac{\partial L}{\partial C_T}$$

This uninterrupted, linear gradient flow pathway is called the Constant Error Carousel. It guarantees that error signals propagate backward over hundreds of time steps without exploding or vanishing!

6. Runnable Python Simulation Script

Below is a complete, zero-dependency Python simulation comparing a standard RNN cell vs. an LSTM cell across a 50-step sequence.

"""
LSTM Cell & Gradient Flow Simulation from Scratch
Author: Narendra Vadapalli
Series: Neural Architecture Evolution Series (Part 2)

This script demonstrates why Long Short-Term Memory (LSTM) networks were invented:
1. Standard RNN: Hidden state (h_t) suffers from vanishing gradients over long sequences (t=50).
2. LSTM Network: Cell state (C_t) acts as a memory conveyor belt, maintaining gradient flow.
"""

import math
import random

def sigmoid(x: float) -> float:
    """Standard sigmoid activation function bounded in (0, 1)."""
    return 1.0 / (1.0 + math.exp(-max(min(x, 500), -500)))

def tanh(x: float) -> float:
    """Hyperbolic tangent activation function bounded in (-1, 1)."""
    return math.tanh(x)

class SimpleRNNCell:
    """Standard Recurrent Neural Network (RNN) Cell."""
    def __init__(self):
        random.seed(42)
        self.w_h = random.uniform(-0.5, 0.5)
        self.w_x = random.uniform(-0.5, 0.5)
        self.b = 0.0

    def forward_sequence(self, x_seq):
        h_states = [0.0]
        for x_t in x_seq:
            h_prev = h_states[-1]
            h_t = tanh(self.w_h * h_prev + self.w_x * x_t + self.b)
            h_states.append(h_t)
        return h_states

    def compute_gradient_norm(self, seq_len):
        grad = 1.0
        for _ in range(seq_len):
            grad *= (self.w_h * 0.5)
        return abs(grad)

class LSTMCell:
    """Long Short-Term Memory (LSTM) Cell from Scratch."""
    def __init__(self):
        random.seed(42)
        # Forget Gate (f)
        self.w_f = random.uniform(-0.2, 0.2)
        self.b_f = 1.0  # Positive bias to default forget gate ~ 1 (remember)

        # Input Gate (i) & Candidate Cell State (c_tilde)
        self.w_i = random.uniform(-0.2, 0.2)
        self.b_i = 0.0
        self.w_c = random.uniform(-0.2, 0.2)
        self.b_c = 0.0

        # Output Gate (o)
        self.w_o = random.uniform(-0.2, 0.2)
        self.b_o = 0.0

    def forward_step(self, x_t, h_prev, c_prev):
        combined = h_prev + x_t
        f_t = sigmoid(self.w_f * combined + self.b_f)
        i_t = sigmoid(self.w_i * combined + self.b_i)
        c_tilde = tanh(self.w_c * combined + self.b_c)

        c_t = f_t * c_prev + i_t * c_tilde
        o_t = sigmoid(self.w_o * combined + self.b_o)
        h_t = o_t * tanh(c_t)

        return h_t, c_t, (f_t, i_t, o_t)

    def forward_sequence(self, x_seq):
        h_states, c_states, gate_history = [0.0], [0.0], []
        for x_t in x_seq:
            h_t, c_t, gates = self.forward_step(x_t, h_states[-1], c_states[-1])
            h_states.append(h_t)
            c_states.append(c_t)
            gate_history.append(gates)
        return h_states, c_states, gate_history

def run_simulation():
    seq_length = 50
    print("=" * 70)
    print("      LSTM VS STANDARD RNN: CONQUERING LONG-TERM MEMORY AMNESIA      ")
    print("=" * 70)
    print(f"Sequence Length: {seq_length} time steps\n")

    input_seq = [1.0] + [random.uniform(-0.1, 0.1) for _ in range(seq_length - 1)]

    # 1. Standard RNN
    rnn = SimpleRNNCell()
    rnn_h = rnn.forward_sequence(input_seq)
    rnn_grad = rnn.compute_gradient_norm(seq_length)

    print(f"[1] Standard RNN Performance:")
    print(f"    - Initial Signal (t=0) : {input_seq[0]:.4f}")
    print(f"    - Hidden State at t=50: {rnn_h[50]:.4f}")
    print(f"    - Gradient Magnitude  : {rnn_grad:.10e}")
    print("    --> Result: Signal degraded completely due to Vanishing Gradient!\n")

    # 2. LSTM Cell
    lstm = LSTMCell()
    lstm_h, lstm_c, gates = lstm.forward_sequence(input_seq)

    print(f"[2] LSTM Cell Performance (Conveyor Belt + Gated Doors):")
    print(f"    - Initial Signal (t=0) : {input_seq[0]:.4f}")
    print(f"    - Cell State C_t at t=50: {lstm_c[50]:.4f}")
    avg_f = sum(g[0] for g in gates) / len(gates)
    print(f"    - Average Forget Gate Openness: {avg_f:.2f}")
    print("    --> Result: Cell state maintained gradient pathway across 50 steps!")
    print("=" * 70)

if __name__ == "__main__":
    run_simulation()

7. Summary & What’s Next in Part 3

LSTMs represented a monumental leap in deep learning architecture. By introducing the Cell State ($C_t$) conveyor belt and three Gated Doors ($f_t, i_t, o_t$), LSTMs conquered RNN amnesia and enabled the first generation of production sequence modeling—powering early versions of Google Translate, Siri voice recognition, and handwriting synthesis.

However, LSTMs still possessed a fundamental engineering bottleneck: sequential processing. Because $h_t$ depends directly on $h_{t-1}$, computations cannot be parallelized across massive GPU clusters.

In Part 3 of our Neural Architecture Evolution Series, we will explore The Transformer Revolution: How Self-Attention and $Q K^T V$ Solved the GPU Parallelization Bottleneck, tracing how Vaswani et al. replaced sequential loops with global matrix operations and birthed modern Large Language Models!

8. References & External Links

• Hochreiter & Schmidhuber (1997): Long Short-Term Memory — The original research paper published in Neural Computation introducing the LSTM architecture and Constant Error Carousel.
• Olah (2015): Understanding LSTM Networks — Christopher Olah’s seminal visual walkthrough of LSTM cell states and gated operations.
• Cho et al. (2014): Learning Phrase Representations using RNN Encoder-Decoder — Paper introducing the Gated Recurrent Unit (GRU) as a streamlined alternative to LSTMs.
• PyTorch Official Documentation: torch.nn.LSTM API Reference — Official documentation for PyTorch’s multi-layer LSTM recurrent module.
• TensorFlow Official Documentation: tf.keras.layers.LSTM Guide — Keras API guide for implementing LSTM layers in TensorFlow.

Series Navigation:

• ← Part 1: Demystifying Neural Networks: From Simple Perceptrons to Deep Neural Networks (DNNs), CNNs, and RNNs (Previous)
• Part 3: The Transformer Revolution: How Self-Attention and Q K^T V Solved the GPU Parallelization Bottleneck (Next) →
